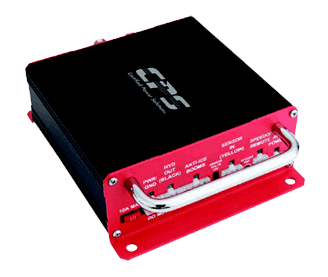

SpreadSmart RX: Electronic Spreader Control System
SpreadSmart RX™ delivers precision control for high-performance spreading operations. Engineered for accuracy, power, and reliability, it provides advanced closed- and open-loop control for granular, pre-wet, and anti-ice applications — making it one of the most versatile spreader control systems in the industry.
With intelligent features like temperature-linked spreading, load and rate management, and Wi-Fi data transfer, SpreadSmart RX™ enables operators to optimize material usage, enhance compliance, and streamline reporting — all from an intuitive, easy-to-use interface.
Precision Controls for Powerful Spreader Performance
The SpreadSmart RX™ control system offers unmatched precision across every spreading function.
Key Capabilities:
- 4-channel, closed-loop, ground-speed-oriented controller (optional 8-channel for tow plow applications)
- Multiplex/CAN bus communication for real-time system data sharing
- Temperature-triggered spreading through Temp Response™ integration
- Proportional closed-loop gate control for precise material flow
- On-board diagnostic tools and AVL-ready hardware
Smart Spreading and Load Management
SpreadSmart RX™ automatically adjusts application rates to match road conditions, vehicle speed, and lane width.
- Customizable spreading definitions for granular, pre-wet, and anti-icing materials (up to 10 types per category)
- Area or linear spreading modes for one or multiple lanes
- Load and rate calculator to determine granular and liquid requirements per route and automatically apply rates based on distance and lane coverage
- Displays live totals for miles, tons, gallons, and material remaining
Data Logging and AVL Integration
SpreadSmart RX™ simplifies compliance and reporting with built-in data logging and GPS connectivity.
- Logs application rates, totals, and material definitions for billing or reporting (state, county, or city level)
- Tracks both storm and seasonal totals (storm total is operator resettable)
- Compatible with a wide range of radio and cellular AVL systems for integrated fleet management
- Wi-Fi data transfer and optional Drive by Download™ for simplified reporting
Technical Specifications
- Voltage: 11–15V DC
- Current: Max 10 Amps
- Fuse: 10 Amps
- Operating: –20°C to 70°C
- 8-line × 40-character LCD
- 7" color TFT display (optional touchscreen)
- 10" dual-camera touch display
- Seat, pedestal, or dash mount
- Standalone or integrated configuration
Ongoing Support for Legacy Systems
As a proven and widely adopted spreader control system, SpreadSmart RX™ remains fully supported by Certified Power Solutions. Our service team provides parts, technical support, and system calibration to ensure every RX-equipped vehicle continues to perform reliably and accurately.

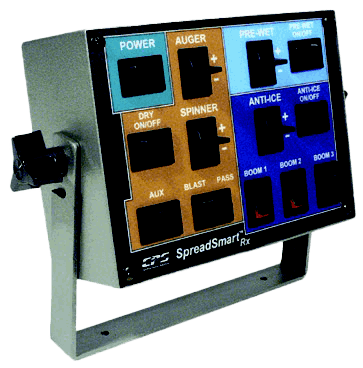

SpreadSmart RX™ is designed for ease of use and fast configuration in the field.
- System setup wizard with on-screen, step-by-step programming and troubleshooting
- On-screen diagnostics for GPS, sensors, and memory status, with help menus for each function

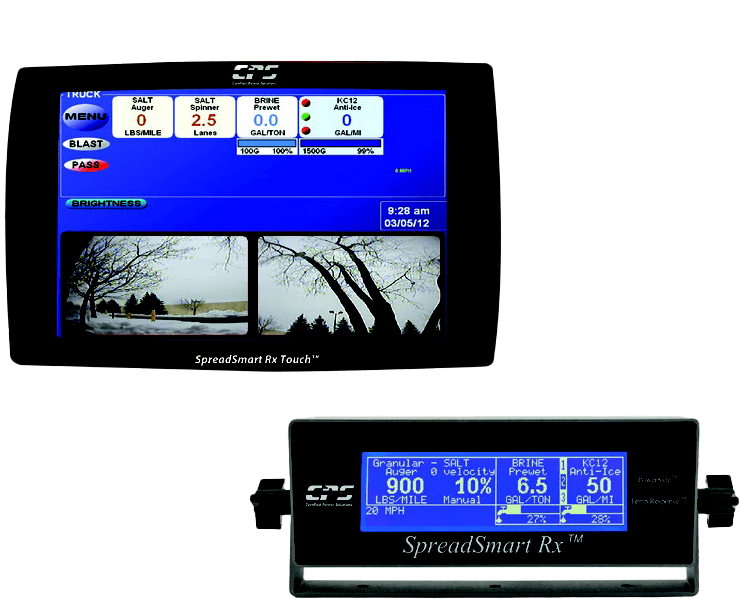

- Multiple display options, including 7" color TFT touchscreen and 10" dual-camera display for front and rear views
- Audible and visual alarms for system alerts
Certified Power Solutions’ built-in safeguards help protect the operator and equipment:
- Power Safe™ prevents random grounds from powering hydraulic systems
- Channel Safe™ detects and protects against open or short circuits in hydraulic channels
- Programmable Blast and Pass (Pause) modes for efficient spreading control
- System operates on 11–15V DC with multiple valve frequency compatibility
