Multi-Stix: Proportional Plow Control System
The Multi-Stix™ Series delivers fully proportional, multi-joystick hydraulic control for plow, wing, and auxiliary functions. Designed for precision and flexibility, Multi-Stix allows operators to individually program joystick motion speed in every direction without changing wiring or hydraulic components — powered by Certified Power Solutions' Mako™ electronics platform.
With models available for various fleet sizes and configurations, Multi-Stix integrates seamlessly with SpreadSmart RX™ and EZ Spread™ control systems to create a unified operator interface for both plowing and spreading operations.
Proportional Control with Flexible Configuration
The Multi-Stix™ Series provides the same high-performance proportional control trusted in Uni-Grip™ systems, but with the added flexibility of multiple joysticks for independent hydraulic management. Each joystick uses Hall-effect sensing for precise motion control and durability in the harshest winter environments.

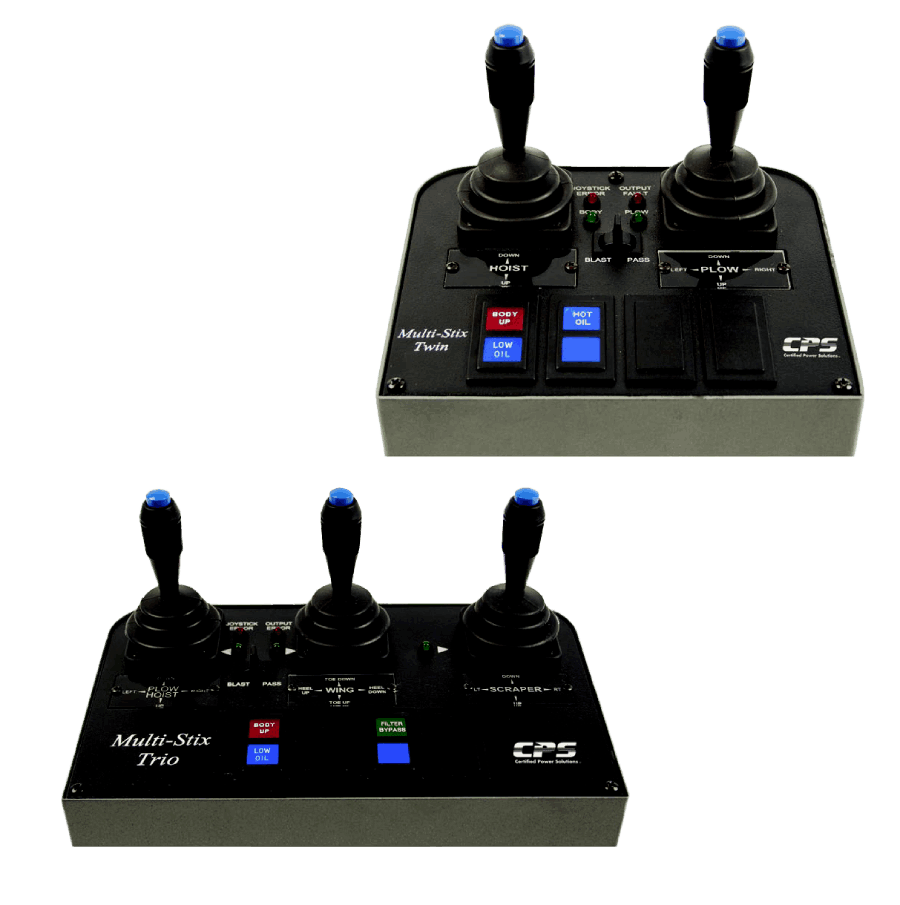

Available Models:
- MS 216: Controls up to 4 devices with 16 PWM channels
- MS 320: Controls up to 6 devices with 20 PWM channels
- MS 420: Controls up to 8 devices with 20 PWM channels
Key Features:
- 1 or 2-axis motion with 27° range per axis
- CAN bus connectivity for multi-joystick systems
- Frequency range: 40–450 Hz
- IP68-rated top switch for safety interlock or secondary mode actuation
- User-programmable speeds for each direction via Mako Trim™ software
Precision, Safety, and Diagnostics
Multi-Stix™ incorporates advanced diagnostics and operator safeguards for reliable operation across every joystick and function.
Safety and Diagnostic Features:
- SafeStik™ automatically disables failed joystick axes during uses
- Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels
- Built-in LED joystick diagnostics for quick troubleshooting
- CAN bus self-test runs at every power cycle to verify all axis responses
- Programmable Combo-Up (Panic) button to return up to six devices to park position
Operator Control and Ergonomics
Multi-Stix™ joysticks are designed for comfort and clarity. Each joystick integrates LED or LCD feedback, color-coded warning indicators, and configurable triggers for intuitive operation.
Operator Interface Highlights:
- Up to 8 labeled LED warning indicators integrated into the joystick housing
- User-settable float functions for plow, wing toe, wing heel, and blade
- Optional hoist, plow, and blade interlocks (requires external sensors, keys, or switches)
- Seat- or pedestal-mounted systems for ergonomic positioning
Technical Specifications
| Specification | Details |
|---|---|
| Models | MS 216, MS 320, MS 420 |
| Device Capacity | Up to 8 devices (model dependent) |
| Proportional Channels | Up to 20 PWM |
| Joystick Motion | 1 or 2 axes (X and Y), 27° per axis |
| Signal Type | Hall-effect magnetic sensing, no mechanical contacts |
| Diagnostics | LED and CAN bus-based self-test |
| Power Requirements | 11–15V DC, max 10A |
| Operating Temp. Range | -20°C to 70°C |
| Mounting Options | Seat- or pedestal-mounted |
| Software | Mako Trim™ for calibration and function naming |
| Safety Systems | SafeStik™, Channel Safe™, Combo-Up (Panic) button |

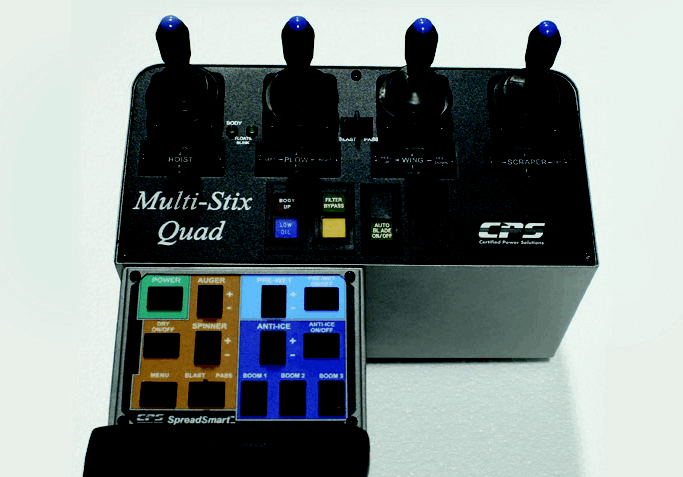

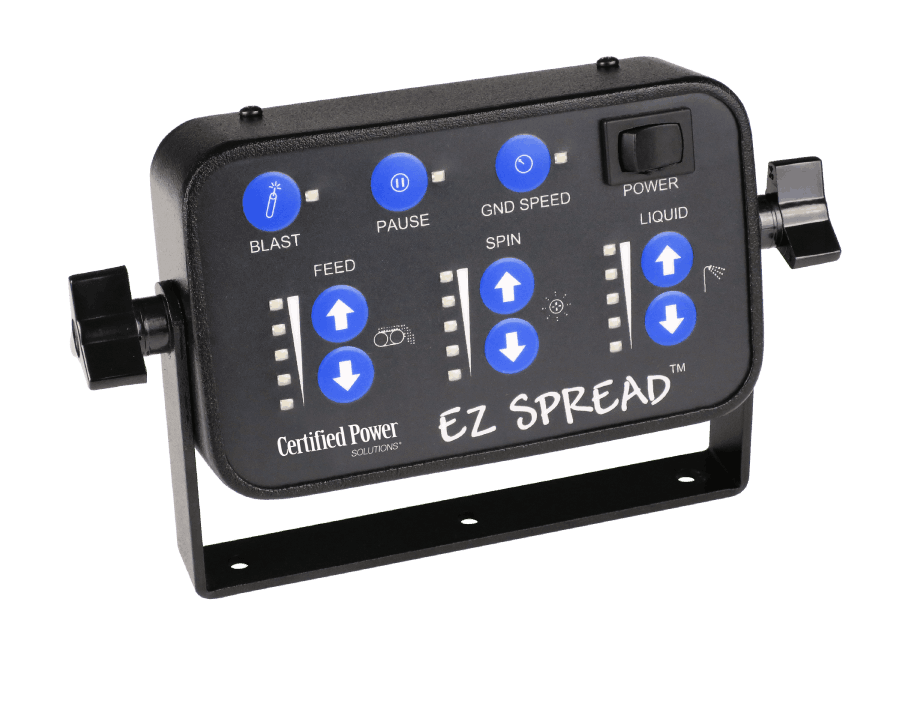

Multi-Stix™ connects directly with Certified Power Solutions SpreadSmart RX™ and EZ Spread™ electronic spreader control systems, forming a complete plow and spreader command solution. This integration allows operators to manage both hydraulic and material control functions from a unified console — improving workflow efficiency and reducing cab clutter.
Trusted by municipalities and contractors alike, the Multi-Stix™ Series provides the accuracy, responsiveness, and reliability required for demanding snow and ice control operations. Certified Power Solutions continues to provide full parts, service, and technical support for every Multi-Stix installation.
